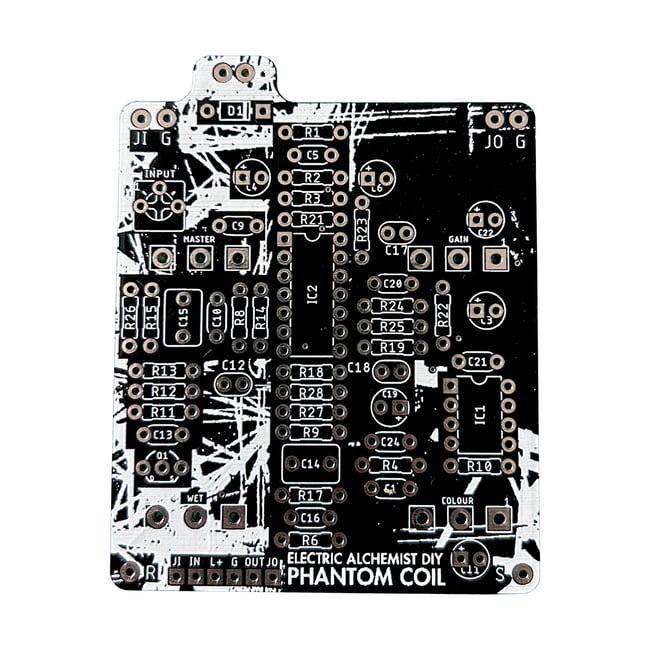

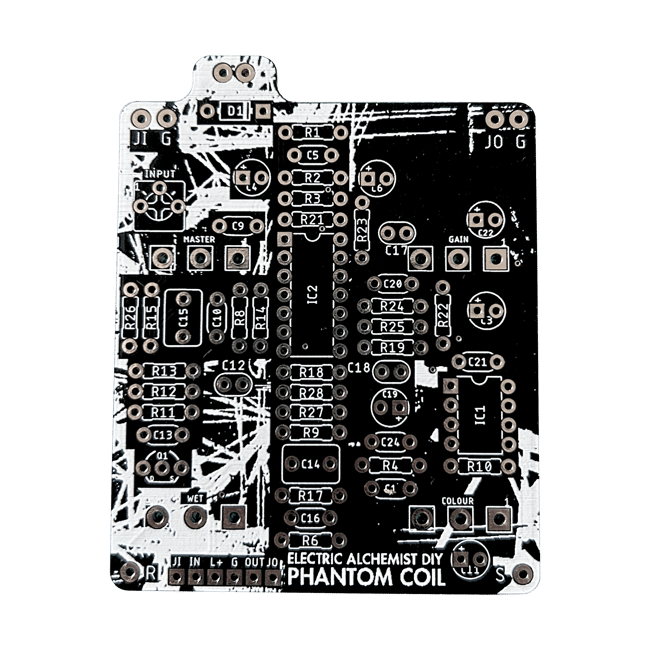

PHANTOM COIL DIY PCB

*PLEASE BE AWARE, THIS PROJECT IS ONLY RECOMMENDED FOR EXPERIENCED BUILDERS AS THERE IS NO BUILD SUPPORT PROVIDED*

Phantom Coil is a lofi dirty reverb that is built around a genuine spring reverb tank.

It should just about fit into a 1590XX enclosure with the tank although you may want to house the circuit separately in a smaller enclosure and add send/return jacks to try out a few different tanks. I built it around the Accutronics AMC2EF3 as it’s cheap and readily available (and is about the only tank small enough inside a pedal enclosure). You may want to try it out with other tanks although I can’t guarantee they’ll work the same.

There are four controls on the pcb. Master sets the overall output volume, Gain set’s the drive for both wet and dry signals, Wet sets the volume of the signal returning from the tank and Colour is a tone control that affects both wet and dry signals.

Please find the build documents below:

https://docs.google.com/document/d/1_H8wwvrOeQ4_BMSS4l6hnOE2JEyxIM8QimzDbY2urDg/edit?usp=sharing

PCBs are posted without tracking to keep costs down. If you would prefer tracking please email [email protected] and I'll get you a quote.
